EPM connection S6-GR1P(8-10)K03-NV-ND
Some clarification about EPM connection to S6-GR1P(8-10)K03-NV-ND.

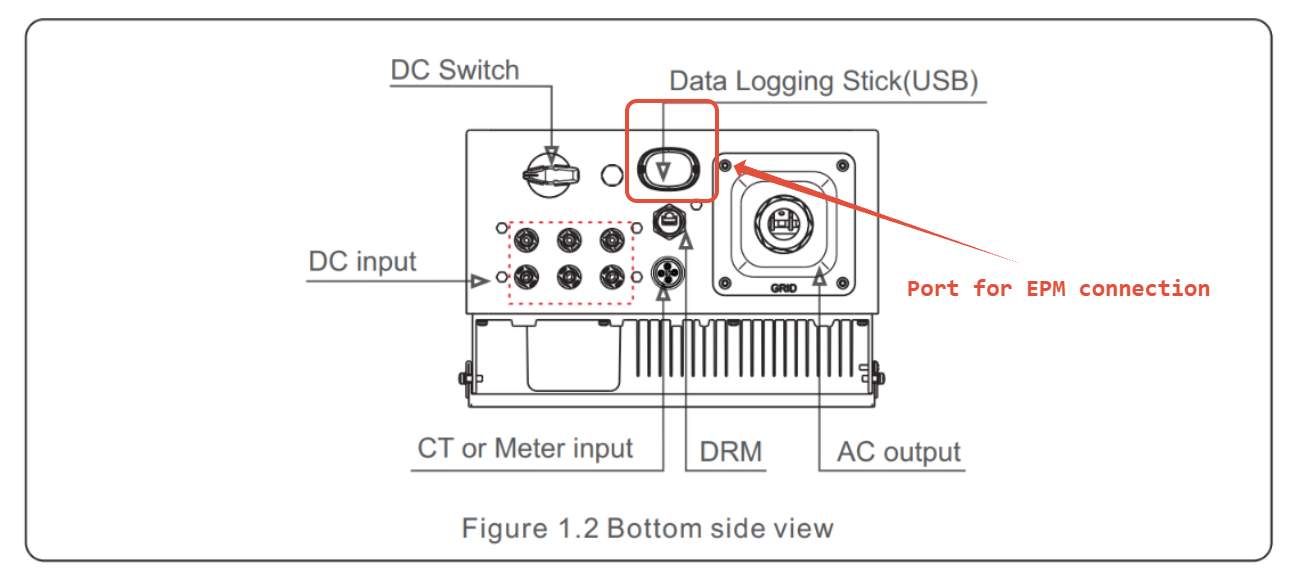

1. The EPM device plugs into the communication port, the same port used by the data collector. It's not a separate dedicated meter port. To connect a wires you will need an USB-to-RS485 adapter.

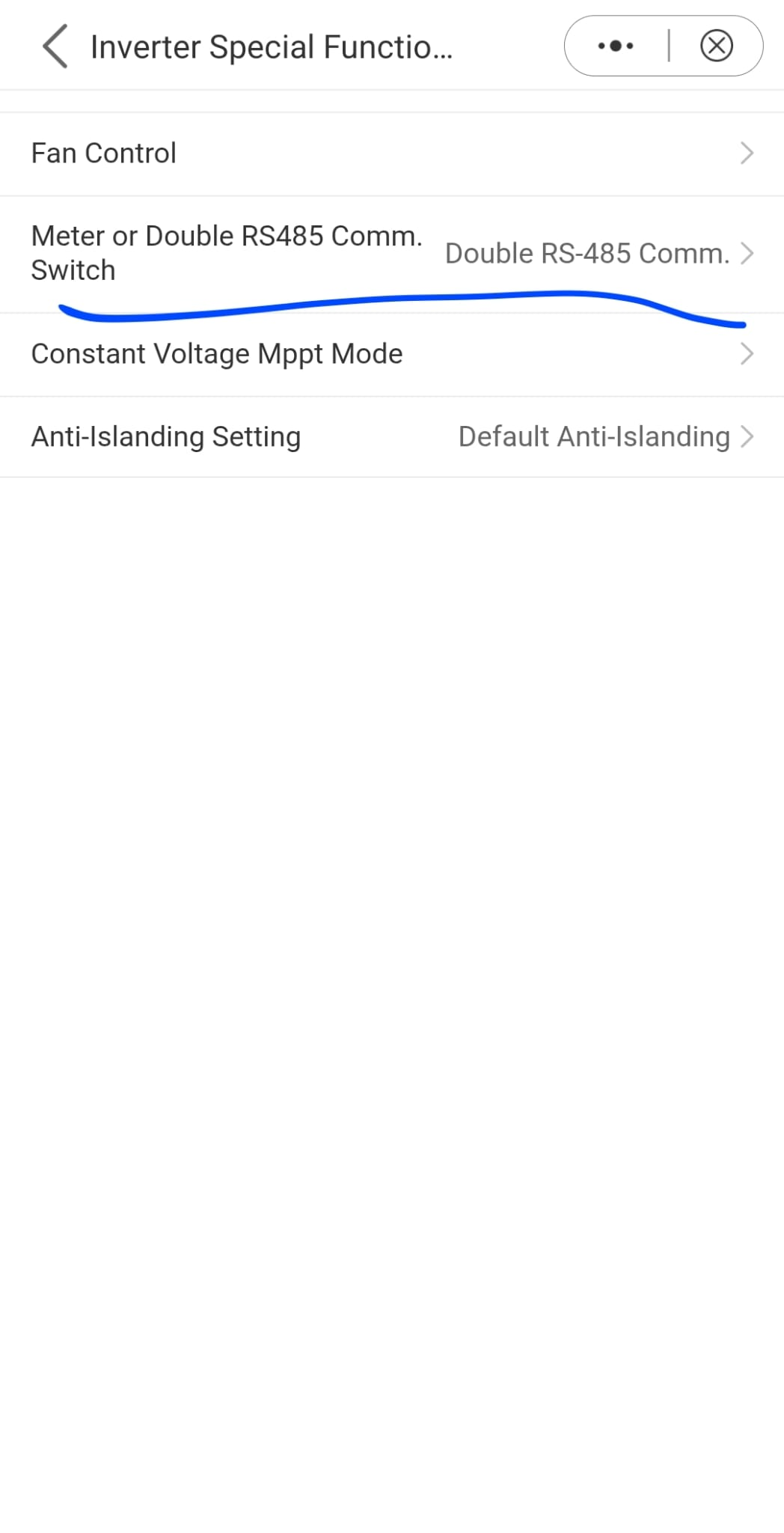

2. The double RS485 feature is not used for EPM connection. Normally the meter port is meant for a meter, but since some users need two separate RS485 channels one for the datalogger and one for a local PC to control the inverter so the meter port was made configurable as a second RS485 port.
