Connect Tigo optimizers to SolisCloud

This article will guide you to connect the Tigo optimizers to the SolisCloud platform.

Prerequisites:

- The plant was created already in SolisCloud and Tigo platform

- You have a Tigo Premium account, because only premium users have API access.

Step 1:

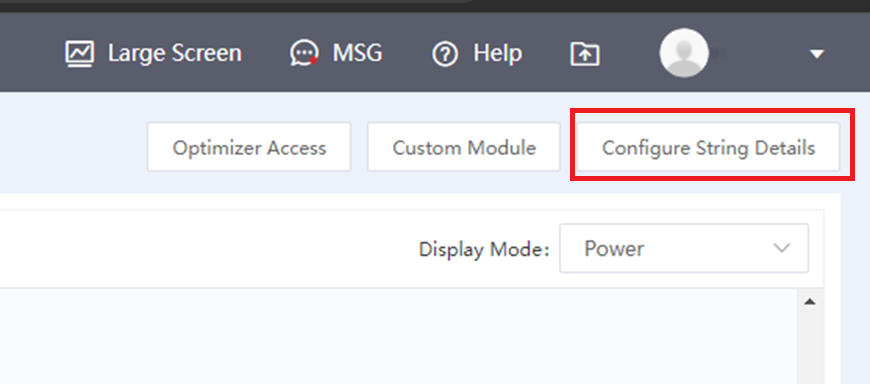

Configure string details in the Plant > Layout

Step 2:

Create the Logical Layout

Step 3:

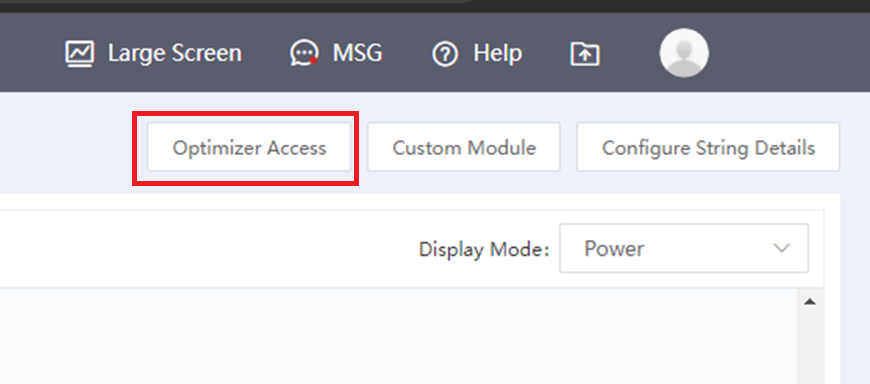

Click on Optimizer Access

Step 4:

Step 5:

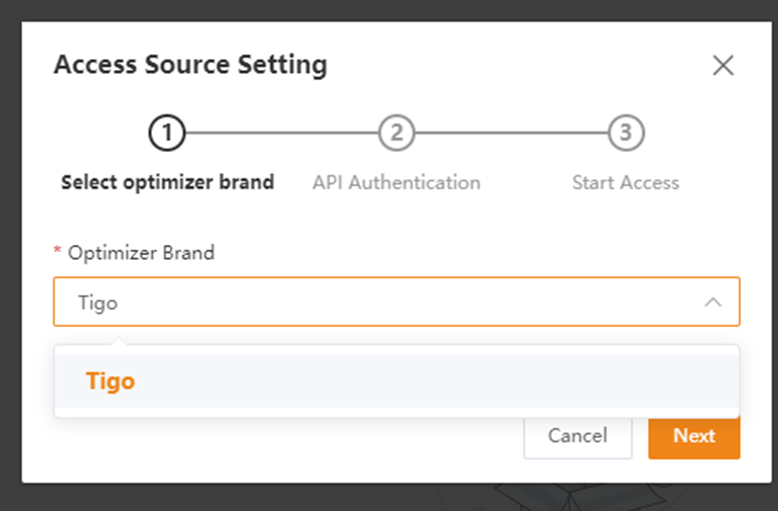

Select the optimizer brand that you want to integrate

Step 6:

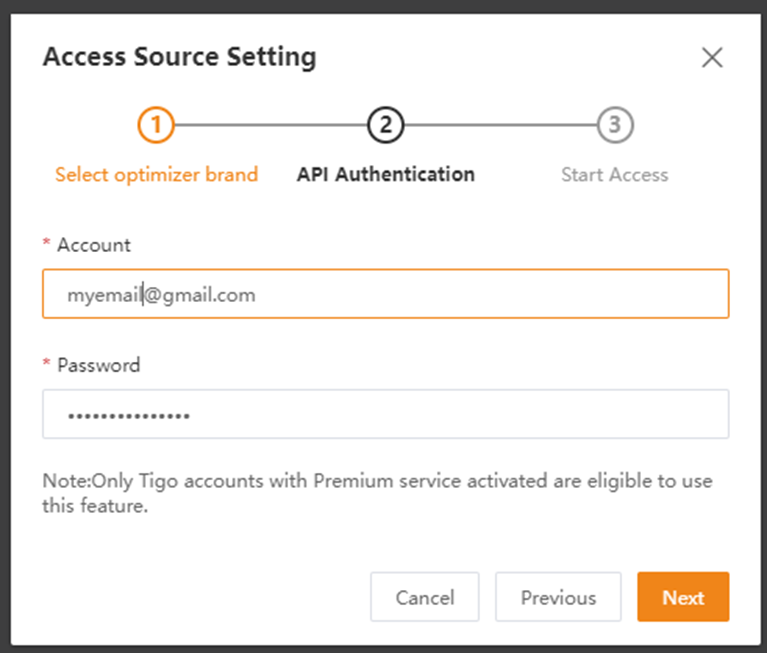

Enter the username and password from the Tigo account

Step 7:

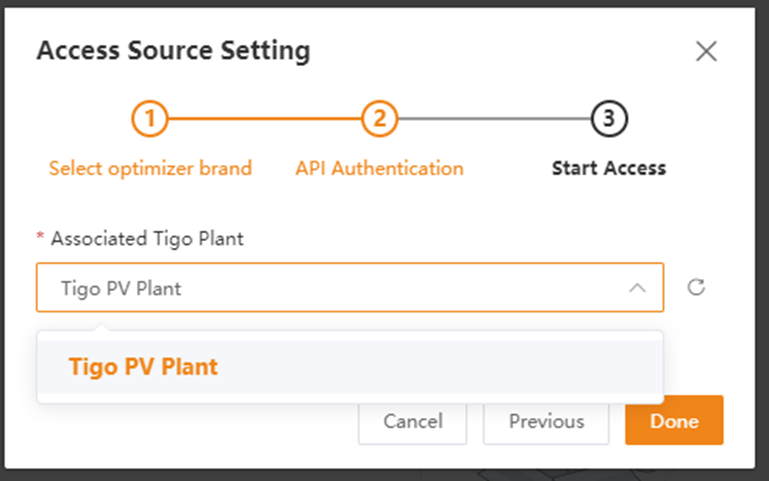

Select the plant created in Tigo Platform so it can import the correct optimizers and click on Done.

Step 8:

Import succesful, click on go to configuration

Step 9:

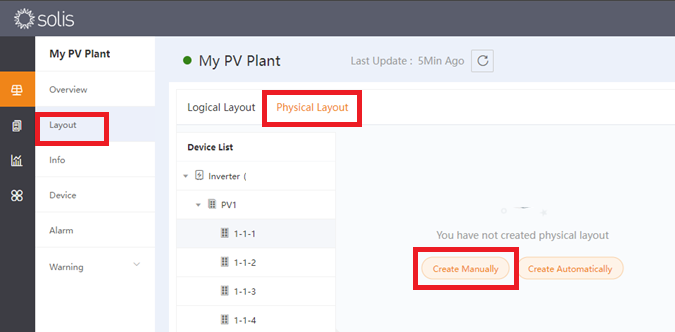

Go to Layout > Physical Layout and create it manually or automatically

Step 10:

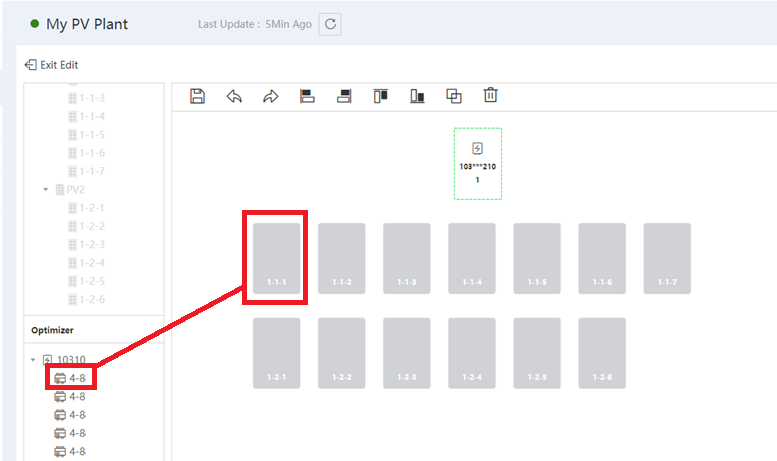

Place on the map the inverter and the PV panels, then click on an optimizer from the left side then select the coresponding pv module.

Configuration complete!

You can now visualize the Tigo optimizers in SolisCloud.

.
