Communication Ports for Battery Connection





As the demand for clean and reliable energy solutions continues to grow, the compatibility of Solis inverters with batteries from different manufacturers has become a pivotal concern for those seeking versatile and efficient energy storage solutions. In this article, we will delve into the various methods and considerations for seamlessly connecting Solis inverters with batteries from multiple manufacturers, empowering you to tailor your energy storage system to your unique requirements.



If you want to connect your battery with Solis inverters, the communication ports on the inverter side are as follows:



CAN-H (Controller Area Network High) on Pin 4 (blue)

CAN-L (Controller Area Network Low) on Pin 5 (blue/white)









A computer cable with a wire connected to it

Description automatically generated with medium confidence



When it comes to understanding the CAN communication details for your batteries, we recommend referring to the individual battery manuals provided by each manufacturer. Different battery manufacturers may have unique specifications and requirements for CAN communication, so it's crucial to consult the specific documentation for the batteries you are using.

We understand that this can be a bit complex, but we have compiled a list of communication connection details for several battery manufacturers to assist you.





High Voltage (for S6-EH3P(5-10)K-H-EU and RHI-3P(5-10)K-HVES-5G devices):

(Please click on links)



  1. BYD (Battery-Box-Premium - HVS/HVM)
  2. Pylon (Force-H2)
  3. Soluna (Module 10K Pack HV)
  4. Weco (WeCo5K3-LV-HV)
  5. Dyness (Tower Series)
  6. LG Energy Solutions (Resu 10H Prime)




Low Voltage (for RHI-(3-4.6)K-48ES-5G, S5-EH1P(3-6)K-L and S6-EA1P(3.6-6)K-L devices):

(Please click on links)



  1. BYD (Battery-Box-Premium - LVS/LVM)
  2. Pylon (Force-L1)
  3. Pylon (US5000)
  4. Fox (LV5200)
  5. LG Energy Solutions (Resu3.3, Resu 6.5, Resu10)
  6. Puredrive (PureStorage II Hybrid 5kWh)
  7. Green Solutions (Home E10)
  8. UZ Energy (Power Lite)
  9. WeCo (5K3 XP/4K4 LT)







HIGH VOLTAGE BATTERIES:






BYD:

Battery Box Premium - HVS/HVM

HVS 5.1, 7.7, 10.2, 12.8

HVM 8.3, 11.0, 13.8, 16.6, 19.3, 22.1



If you want to connect your BYD battery with Solis inverters, the communication ports on the inverter side and BMS side are as follows:



CAN-H (Controller Area Network High) on Pin 1 (blue)

CAN-L (Controller Area Network Low) on Pin 2 (blue/white)



A diagram of a power supply

Description automatically generated





A diagram of a wiring diagram

Description automatically generated









PylonTech:

Force-H2



If you want to connect your Pylon battery with Solis inverters, the communication ports on BMS side are as follows:



BMS:



A close-up of a device

Description automatically generated



Communication Terminals:



A screenshot of a computer

Description automatically generated



Definition of RJ45 Port Pin



CAN-H (Controller Area Network High) on Pin 4 (blue)

CAN-L (Controller Area Network Low) on Pin 5 (blue/white)



A table with numbers and letters

Description automatically generated







Soluna:

Module 10K Pack HV





BMS:


Please make sure that you are using the correct COM Port (CAN 1 port)




A yellow and black text on a white background

Description automatically generated


The CAN communication interface for Soluna battery is as follows:






CAN 1 port for inverter communication



A white rectangular box with black text

Description automatically generated







WECO:

WeCo5K3-LV-HV and HV BOX XP





When establishing a connection between your Weco battery and Solis inverters, the communication ports on the BMS side are configured as follows:



A diagram of a wiring diagram

Description automatically generated





RJ45 port corresponding to the CAN bus pin definition



A rectangular object with numbers

Description automatically generated


PLEASE HAVE A LOOK AT THE FOLLOWING ARTICLE FOR DETAILED INSTRUCTION ON HOW TO CONNECT YOUR WECO BATTERY WITH THE SOLIS INVERTERS

https://solis-service.solisinverters.com/a/solutions/articles/44002490198?lang=en





Dyness:

Tower Series



If you're looking to link a Dyness Tower battery with Solis inverters, here are the communication port specifications on the BMS side:



BMS Interface:

A close-up of a device

Description automatically generated

1: Power/ Wake button

2: Battery connection positive

3: CAN Communication port

4: Battery connection negative

5: Power on switch



Pin definition for CAN communication:

A diagram of a cable

Description automatically generated








LG Energy Solutions:

Resu 10H Prime

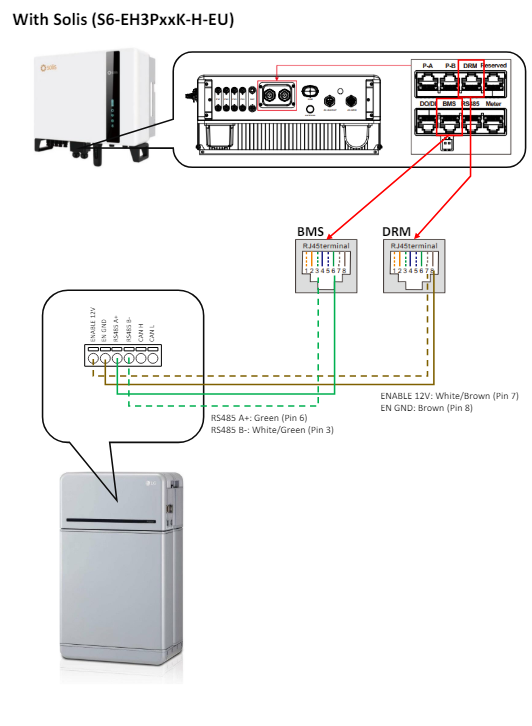

Cable connections:



A diagram of a computer

Description automatically generated



Cable configuration:



A diagram of a diagram of a machine

Description automatically generated with medium confidence



Section A:

Inverter communication ports including CAN/RS485 and enable lines.



Section B:

DIP switch for setting communication termination resistor.



Section C:

DIP switch for setting primary/secondary packs.



Section D:

Do not connect the internal communication ports



Section E:

Battery power ports including positive/negative pole and ground (POS: power terminal plus, NEG: power terminal minus, GND: ground)





Guide for cable connection:



A close-up of a card

Description automatically generated



Communication ports:



  • First, connect the enable ground wire to Terminal 2.
  • Connect the enable 12V positive line to Terminal 1.
  • Select the method that matches the inverter communication method in the part marked.
  • If the inverter uses RS485, connect the RS485 (A+, B-) lines to Terminals 3 and 4. If inverter uses the CAN method, connect the CAN (high, low) lines to Terminals 5 and 6.




DIP switch for setting communication termination resistor of primary/secondary packs



A diagram of a comms resistor

Description automatically generated

Lower the DIP switch (Communication Termination resistor) all downwards for single pack.







LOW VOLTAGE BATTERIES:







BYD:

Battery Box Premium – LVS & LVM

LVS 5.1, 8.0, 12.0, 16.0, 20.0, 24.0





Connection diagram:

A diagram of a computer network

Description automatically generated





Pin assignment for BYD batteries:



A table of text with black text

Description automatically generated with medium confidence








PylonTech:

Force-L1



For those aiming to establish a connection between a Pylon Force L1 battery and Solis inverters, here are the communication port details on the BMS side:



Contol Module:

A close-up of a device

Description automatically generated



A white paper with black text

Description automatically generated







Definition of RJ45 Port Pin



A table with numbers and letters

Description automatically generated

Note: Other Pin must be NULL, if not it may influence the communication of the system.





PylonTech:

US5000



If you need to connect a Pylon US5000 battery and Solis inverters:

NOTE: PLEASE USE THE CAN CABLE PROVIDED BY PYLON



US5000 Front panel:

A screenshot of a computer

Description automatically generated





A screenshot of a phone

Description automatically generated





Definition of RJ45 Port Pin



A white paper with black text and red text

Description automatically generated                        A close-up of a computer connector

Description automatically generated







Fox:

LV5200



BMS Interface:

A white rectangular object with black text

Description automatically generated




    J: CAN

    K: RS485

    L: Ground screw

    M: LinkPort0

    N: POWER-2




CAN / RS485 is the communication interface to the inverter. The interface is defined as follows:



A white square with a cat5e logo

Description automatically generated with medium confidence



A table with numbers and symbols

Description automatically generated with medium confidence









LG Energy Solutions:

Resu3.3, Resu 6.5, Resu10



Connecting network cables:



A diagram of a computer component

Description automatically generated with medium confidence



Connect each network cable to its corresponding network port. Use the port at the lower left for the first battery pack, the one at the lower right for the second battery pack, and the one at the upper for the inverter.



Configuring the battery pack:



A diagram of a device

Description automatically generated



Remove the switch cover by pulling it up to expose the circuit  board.





Settings for CAN bus pin:



A close-up of a device

Description automatically generated








Puredrive:

PureStorage II Hybrid 5kWh



Connection Interface:



A white box with black and red buttons

Description automatically generated



  1. Battery<-->Inverter Power Cables(+)
  2. Battery<-->Inverter Power Cables(-)
  3. Communication cables(up)
  4. Communication cables(down)
  5. Battery reset button
  6. DC Isolator
  7. Grounding Point





Please use the provided communication cable



A black cable with a plug

Description automatically generated



Connect communication cables as shown below. Plug in the COM resistor to the last communication interface, which is open.

Please note that even with a single battery installation or multi battery installation, COM resistor is required to strength the CAN Bus signal.



A white rectangular object with red buttons and black wires

Description automatically generated

            8. Communication cable

            9. COM resistor



A close-up of a plug

Description automatically generated A black round object with a black cord

Description automatically generated

   Plug in COM Resistor                                                          Put on protective cap













Green Solutions Inc.:

Home E10



To interconnect your Green solutions battery with Solis inverters, please note the following communication port settings on the BMS side:



A close-up of a computer

Description automatically generated



Communication Terminals:

A close-up of a computer

Description automatically generated







UZ Energy:

Power Lite



Battery Interface:



A diagram of a device

Description automatically generated

1: SOC LED x4

2: Alarm LED

3: RUN LED

4: Dialer

5: Communication port RJ11 RS232 To upper machine

6: Communication port *2 RJ45 CAN To PCS RS485 Internal Connection

7: Reset Waken system from malfunction status

8: Dry Contact

9: Power On/Off Switch

10: Port Negative x2 PSR6XAB Black 5.7, 25 mm2

11: Port Positive x2 PSR6XBB Orange 5.7, 25mm2

12: GND M6 Yellow-Green, 10 AWG





RJ45 Port definition:



A diagram of a network cable

Description automatically generated with medium confidence



CAN:

  • Pin 1: CAN-H
  • Pin 5: CAN-L
  • Pin 2, 3, 4, 6, 7: NC
  • Pin 8: GND


RS485:

  • Pin 1, 4, 5: NC
  • Pin 2, 7: RS485-A
  • Pin 3, 6: RS485-B
  • Pin 8: GND

RS232:

  • Pin 1, 2, 6: NC
  • Pin 3: BMS transmit; Computer receiver
  • Pin 4: BMS receiver; Computer transmit
  • Pin 5: GND









WeCo:

5K3 XP / 4K4 LT


Battery Interface:


5K3 XP EXAMPLE

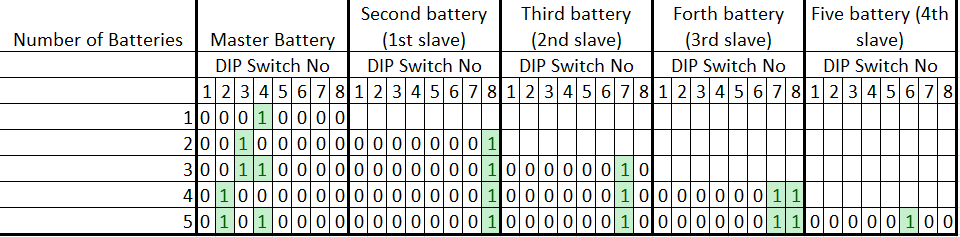

DIP switched are set all OFF (00000000). Only DIP of last slave must be set differently (00000100).


4K4 LT EXAMPLE

DIP switched are set all OFF (00000000). Only DIP of last slave must be set differently (00000100).



BMS CAN PIN OUT at battery side is the same for any WeCo battery.

The RJ45 Terminal on the inverter side needs to be crimped to match inverter PIN OUT




PLEASE HAVE A LOOK AT THE FOLLOWING ARTICLE FOR DETAILED INSTRUCTION ON HOW TO CONNECT YOUR WECO BATTERY WITH THE SOLIS INVERTERS

https://solis-service.solisinverters.com/a/solutions/articles/44002490198?lang=en





We hope that this information on connecting batteries to inverters proves helpful. If you have any further questions or specific battery requirements, please don't hesitate to reach out to us. We're here to assist you in any way we can.
