Solis Online Design Tool
This article refers to our previous online design tool. Solis has now launched a new design tool with enhanced features to improve your experience.
To access the updated tool, please visit the link below:
https://solardesign.solisinverters.com/login
Introduction
The easiest way to test a string configuration is to use our Solis design tool.
Our web based design tool can be accessed using the link bellow:

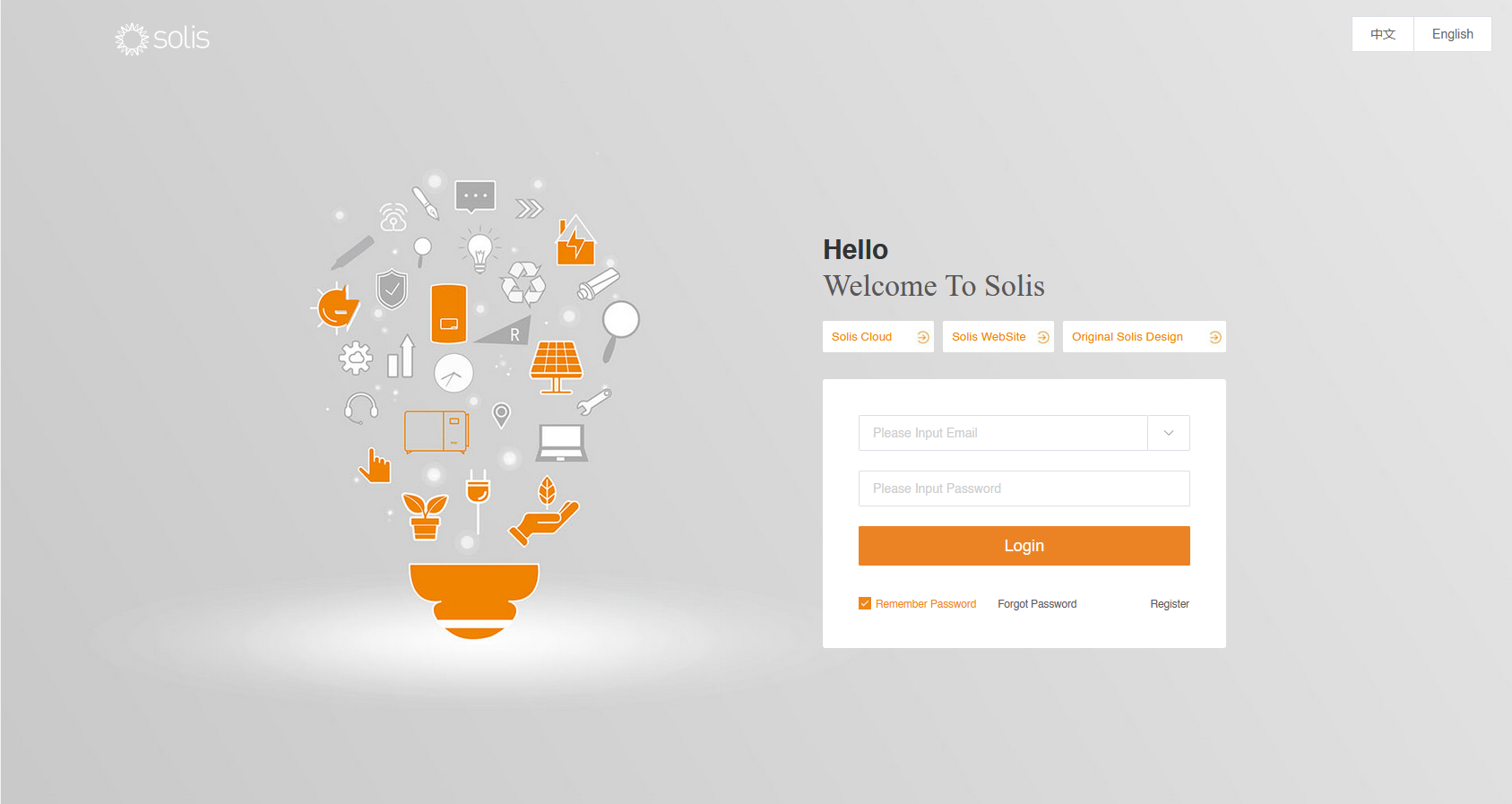

- Set Online account with email address
- Create PV string design
- Can design AC and DC cables too (optional)
- Generate the report and share with customer

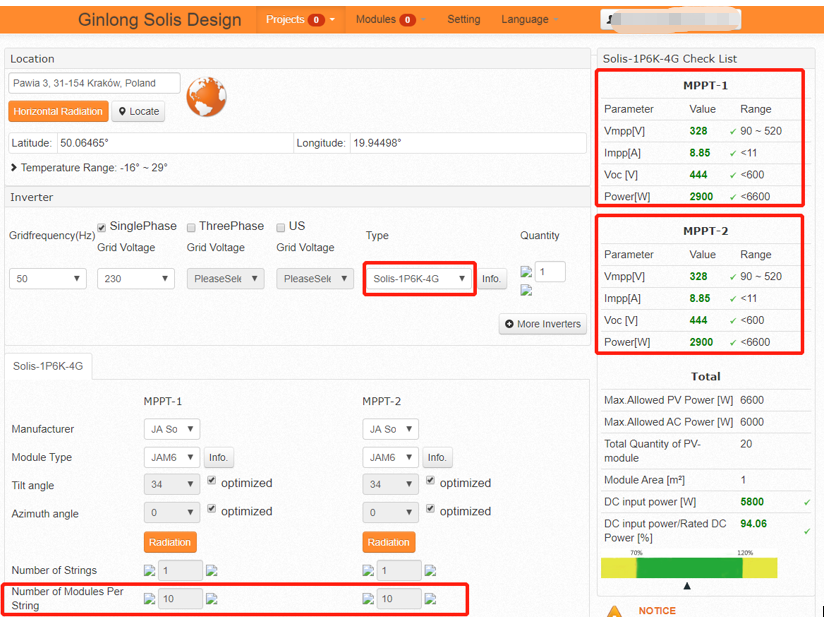

Design steps
- Set Location
- Select Inverter model
- Panel manufacturer

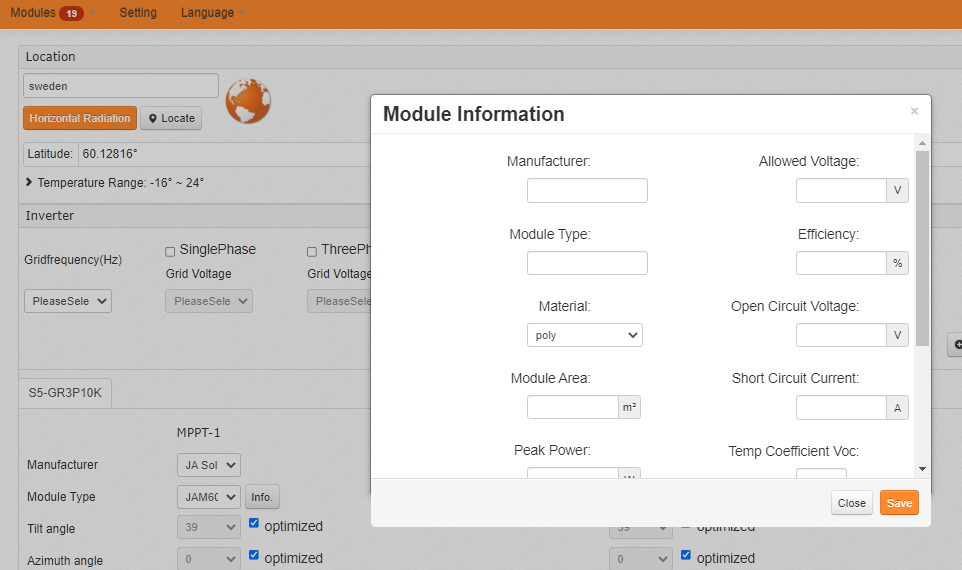

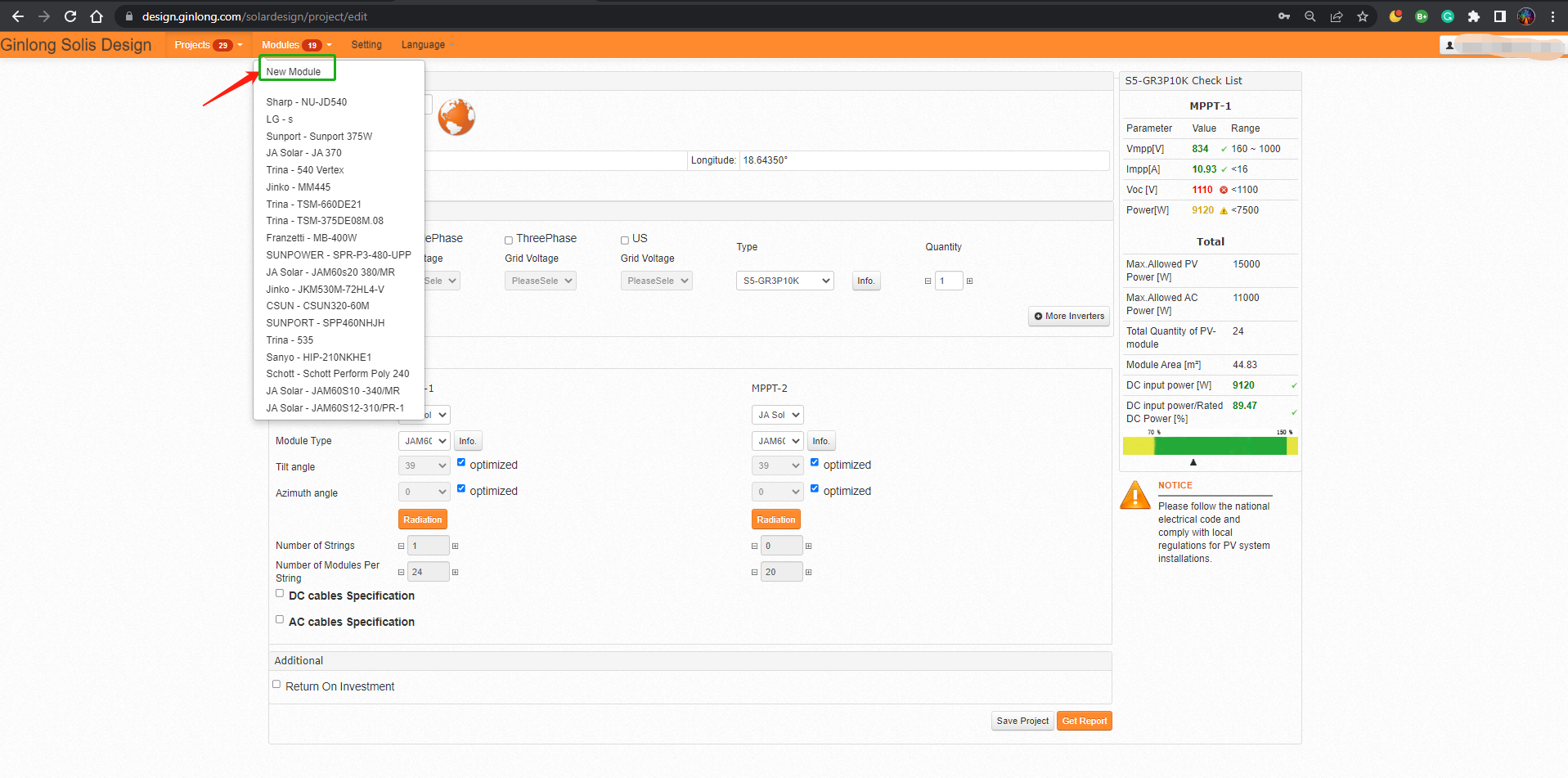

- Select Panel model from the predefined list (can add your own) as per below
You will receive a warning when the design exceeds the limits
- Voltage input
- Maximum Current input
- Power – recommend DC/AC ratio
